Ellix 40 Thermal Receipt Printer - USB+Serial By SAM4s
Product Description

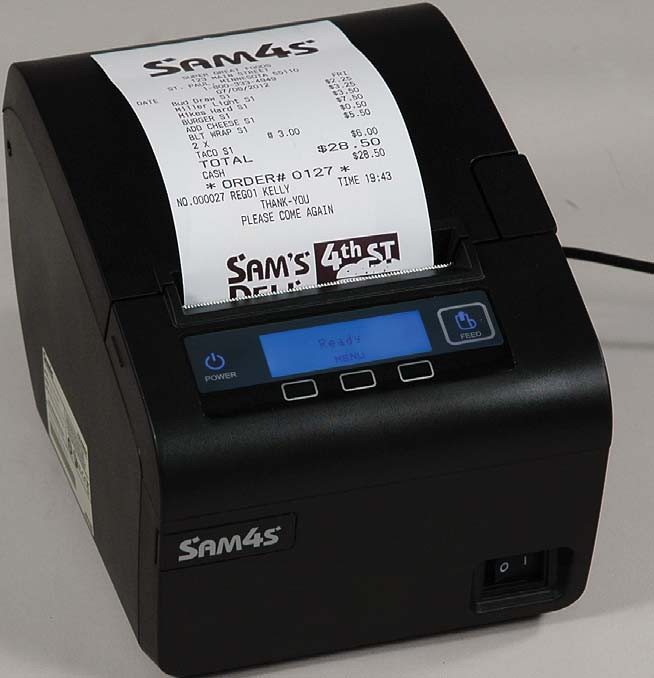

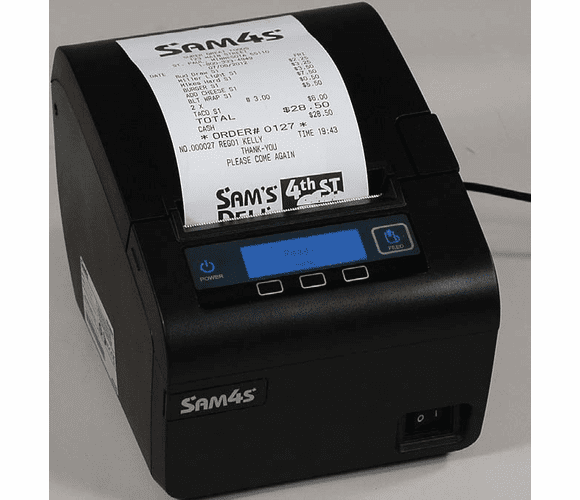

SAM4s Ellix 40 Thermal Receipt Printer - USB+Serial

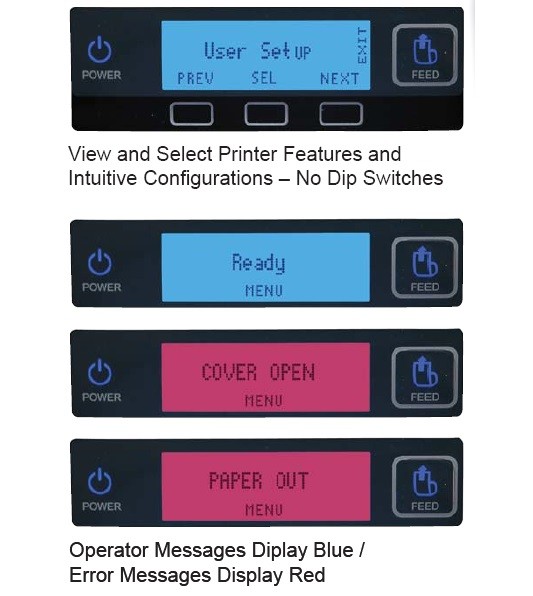

Easy to set up – easier to use and support! The innovative Ellix 40 from SAM4s provides a unique LCD display that displays errors, operator messages, and guides you through setup and option selections.
• Energy Star Certifi ed – Superior Effi ciency Reduces Energy Costs and Carbon Footprint
• Dual Interface – USB Interface is Standard
• 220mm per Second Print Speed

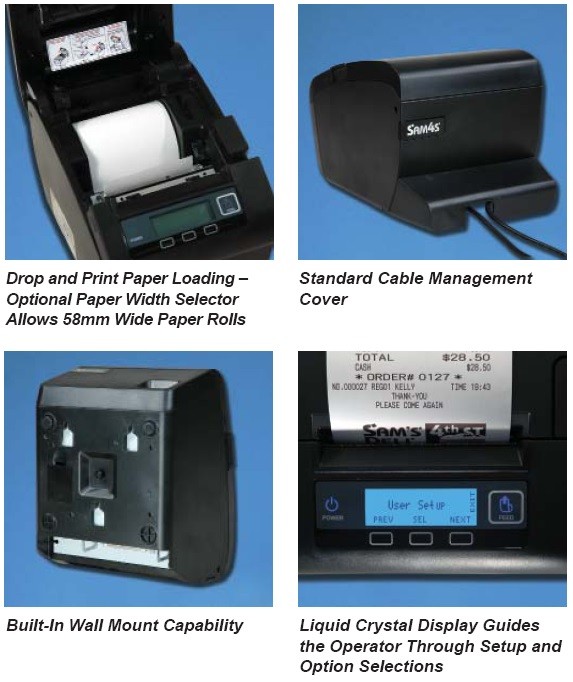

• Drop and Print Paper Loading
• Prints Mono or Two-Color
• Stores/Prints User Defi ned Graphic Logos, Coupons or Advertising Messages
• Prints Watermarks
• Anti-Jam Technology
Easy to set up – easier to use and support! The innovative Ellix 40 from SAM4s provides a unique LCD display that displays errors, operator messages, and guides you through setup and option selections.
• Energy Star Certifi ed – Superior Effi ciency Reduces Energy Costs and Carbon Footprint
• Dual Interface – USB Interface is Standard
• 220mm per Second Print Speed
• Drop and Print Paper Loading
• Prints Mono or Two-Color
• Stores/Prints User Defi ned Graphic Logos, Coupons or Advertising Messages
• Prints Watermarks
• Anti-Jam Technology
Specifications
- LCD Displays Operator Messages, Errors and Guides the Operator Through Setup and Option Selections
- Aluminum Main Frame Insures Durability and Quiet Operation
- Black/Red or Black/Blue Two-Color Printing Available on Appropriate Paper
- Accepts 2" (58mm) or 3" (80mm) Thermal Paper Rolls
- Standard Near-End Paper Sensor
- Guillotine Style, Jam-Free Auto-Cutter - Selectable Full or Partial Cut
- Stores Up to 255 Images (384) Kbytes in Non-Volatile Memory
- Easy-to-Use Utilities Simpify Loading Images and Watermarks
- Dual Interface - USB Interface is on the Main Board

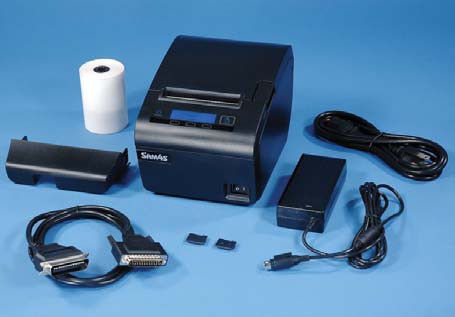

- Carton Includes: Ellix 40 Printer, Cable Cover, Two Power Switch Covers, Starter Paper Roll, Appropriate Printer Cable, Power Supply and Power Cord
- Max. Print Speed Mono 80mm: 220mm / Second (52 Lines / Second)
- Max. Print Speed Mono 58mm: 150mm / Second (36 Lines / Second)
- Max. Print Speed Mono Two-Color: 100mm / Second (24 Lines / Second)
- Printing Method: Direct Thermal
- Resolution: 180 dpi
- Characters Per Line - Font A: 42 (80mm) / 30 (58mm)
- Characters Per Line - Font B: 56 (80mm) / 40 (58mm)
- Characters Size - Font A: 12 x 24
- Characters Size - Font B: 9 x 17
- Paper Roll Type - Width: 80mm / 58mm
- Paper Roll Type - Maximum Diameter: 83mm
- Paper Roll Type - Paper Thickness: 0.06mm ~ 0.08mm
- Auto Paper Cutting Method: Guillotine Style, Jam-Free - Full or Partial Cut
- Reliability - MCBF: 70,000,000 Lines
- Reliability - Printhead Life: >_ 150 KM
- Reliability - Cutter Life: 1,500,000 Cuts
- Character Set - Alphanumeric: 95
- Character Set - International: 37
- Character Set - Graphic: 128 x 11 Page: Code Pages for All Popular Languages
- Bar Code: UPC-A / UPC-E / EAN8 / EAN13 / Code39 / Code93 / CODE128 / ITF / CODABAR / PDF417 / QR Code
- Interpreter: ESC/POS / Star
- Interface: USB+Serial
- Driver: Windows® / OPOS
- Drawer Port: Up to 2 Drawers (+24VDC) / Drawer Compulsion
- Memory - Program Memory: 4 MB
- Memory - Data Memory: 8 MB
- Memory - Data Buffer: 64 KB
- Power Supply: AC 100 ~ 240VDC, 50/60 Hz Adapter Included
- Current/Power Usage: 2.5A / 60W
- Operating Temperature: 40° ~ 114°F (5° ~ 45°C)
- Operating Humidity: 10% ~ 90% RH (Non-Condensing)
- Dimensions: 5-5/8"W x 5-3/8"H x 7-5/8"D
- Shipping Weight: 7 lbs.
- Safety and EMI: FCC Class A / CE / RoHS
