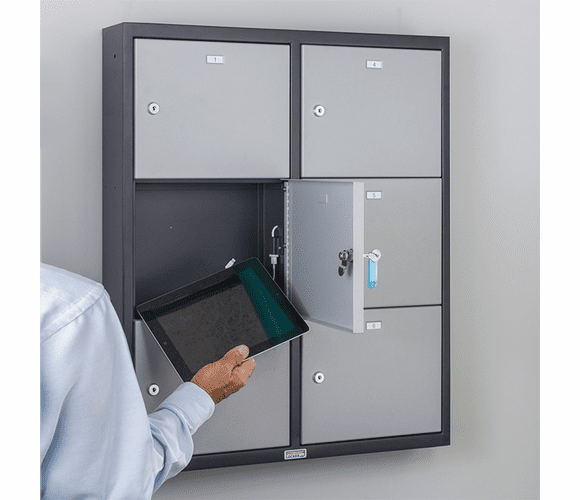

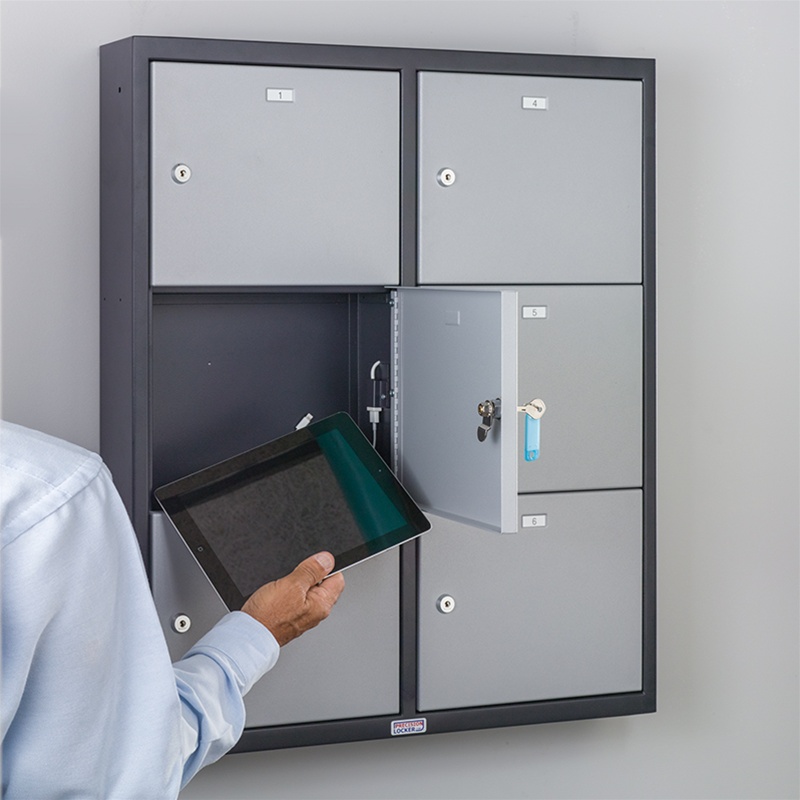

Precision Locker STG23-260430K Snapcharge™ Tablet Locker (6 Doors)

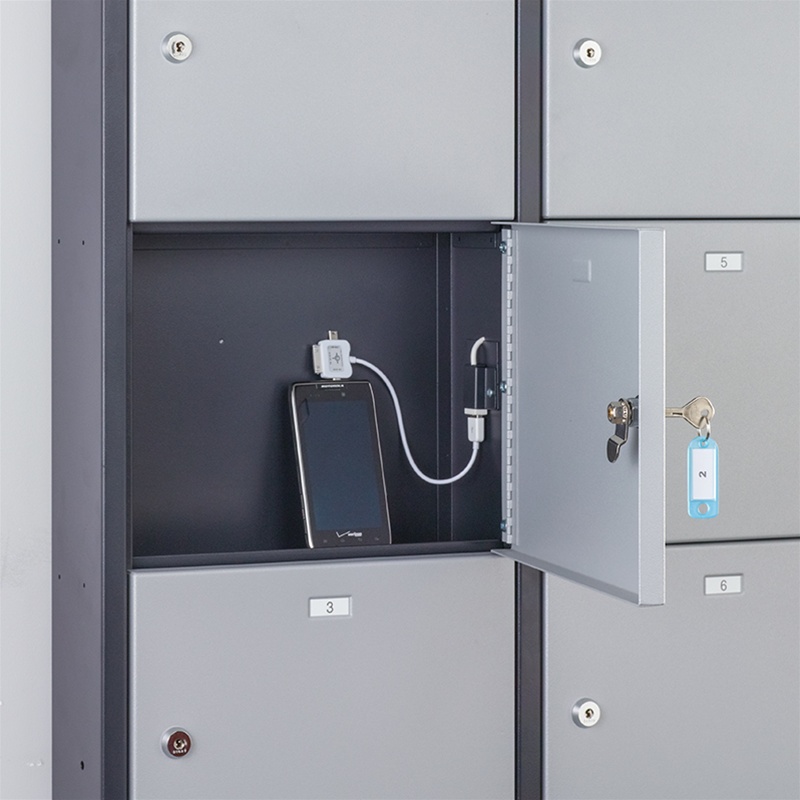

The Snapcharge™ iPad charging locker is designed for the simultaneous USB charging of up to six iPads, tablets, cell phones or other mobile devices. Each locker has six doors (3 high by 2 wide). Each locker compartment has a customized USB cable to charge device. The locker unit is wall mounted with pre-punched holes for easy installation and side-to-side connection. The standard locks have brass cores and proprietary non-commercial key blanks. All USB chargeable devices are easily attached to USB charging cable and are stored upright. Made in USA.
Standard High Security Key Lock:
- Chrome plated brass lock cylinder
- Advanced pick resistance technology
- Restricted key duplication
- Two (2) keys and tags per lock
- Steel locker, fully welded for strength and rigidity.
- Smooth exterior surfaces and door corners.
- Full length hidden hinges.
- Durable textured powder coat paint.

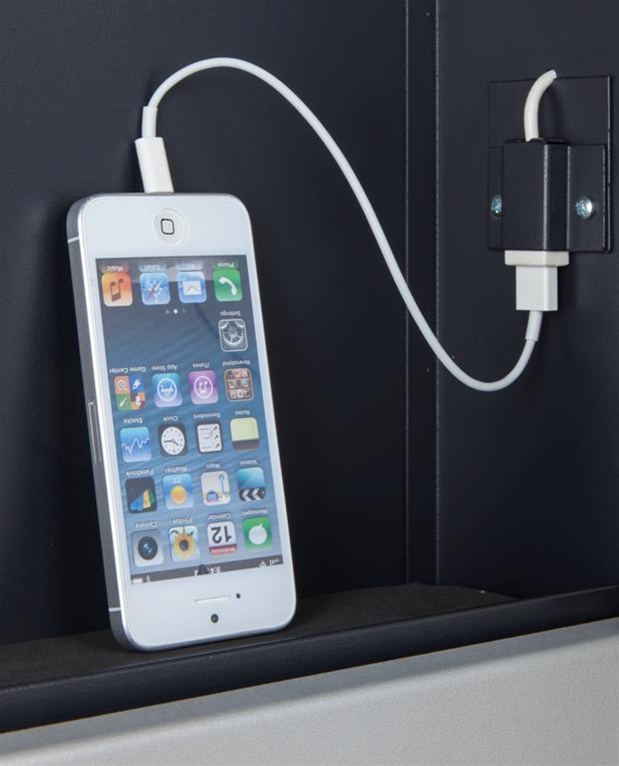

- Customized USB cables for mobile device charging.
Model: iPad/Tablet Charging Locker 2x3 (keyed)
Manufacturer: Precision Locker Company
Model No.: STG23-260430K
Weight: 60 lbs. (27.3 Kg.)
Application: Storage and USB charging locker for iPads, iPhones, tablets, and android cell phones
General Description: Factory assembled steel locker with six (6) patron doors, welded construction, customized USB chargeable cable in each compartment. Vertical configuration: 2-wide x 3-high. Locker cabinet connects to 110V outlet. Concealed USB hub with six ports controls each locker compartment charging.
Charging Specifications via USB hub:
Voltage 12V DC
Power @ Full Load: 63.6 watts (5.3 amps)
USB Output Ratings:
Voltage 5V DC
Current: Each port limited @ 2.3A
Power: 6 ports @ 10W each = 60W total
Dimensions (W x D x H): 26-1/4” (666 mm) x 4-1/4” (108 mm) x 31-3/8” (797 mm)
Door Opening (W x H): 11-1/2” (292 mm) x 9” (229 mm)
Material: Cold rolled prime steel, Frame: 16 gauge, Doors: 16 gauge, Shelves, body: 18 gauge
Construction: Factory assembled; all welded, no protruding rivets, smooth outside surfaces; doors flanged with ground smooth corners; shelves welded and secured to body; hinges continuous, concealed, welded to frame and bolted to door; pry protection bar conceals cam.
Locking System: Two (2) keys per compartment; proprietary non-commercial key blank; non-duplicating patron key combinations; brass lock housing and cylinder; chrome plated finish. Optional master keyed locking system. Lock and key replacement or exchange by Precision Locker Company only.
Finish: Powder coat paint finish; standard color combinations are 2-tone brown (bronze/sand) and 2-tone gray (charcoal/silver). Architectural samples are available.
Installation: Wall mount is recommended; pre-punched mounting holes in rear of unit for securing to wall; pre-punched holes in sides for horizontal ganging; owner to provide fasteners, anchors, brackets and other hardware of type and size appropriate for type of substrate.
